Products Hyundai Elevator

Filter :
  • THE EL
    THE EL

      Classification:  Ultra-High Speed Elevator

      Use:  Office buildings, Hotels



      • Maximum Travel Height: Over 50 stories
      • Speed: 5 ~ 18 m/sec
      • Capacity: 2,000 kg
      • Max Passenger Capacity: 26 persons
  • i-XEL
    i-XEL

      Type:  i-XEL, i-XEL1(H300)

      Classification:  High Speed Elevator

      Use: Residential, Office buildings, Hotels, Hospitals




      • Maximum Travel Height: up to 50 stories tall
      • Speed: 3 ~ 4m/sec
      • Capacity: 2,000 kg
      • Max Passenger Capacity: 26 persons
  • LUXEN
    LUXEN

      Type:  LUXEN, LUXEN1
      Classification:  Low- and Mid-Speed Elevator (MR)
      Use:  Residential, office, educational, commercial buildings, public buildings, hotels, hospitals



      • Maximum Travel Height: up to 45 stories tall
      • Speed: 1 ~ 3m/sec
      • Capacity: 2,000 kg
      • Max Passenger Capacity: 26 persons
  • YZER
    YZER

      Type:  NEW YZER, YZER 1
      Classification:  Low- and Mid-Speed Elevator (MRL)
      Use:  Residential, Office, Educational, Commercial and public buildings, Hotels, Hospitals, Small-sized residential buildings, studio apartment

      • Maximum Travel Height: up to 45 stories tall
      • Speed: 1 ~ 2.5 m/sec
      • Capacity: 2,500 kg
      • Max Passenger Capacity: 33 persons

      https://www.hyundaielevator.co.kr/upload/product-catalog/THE%20EL(E).pdf

  • N:EX
    N:EX

      Type:  N:EX(MR/MRL), N:EX-X(MRL)
      Classification:  Low and Mid-Speed Elevator
      Use:  Residential, Office, Educational, Commercial and public buildings, Hotels, Small-sized residential buildings, Studio apartment

      • Maximum Travel Height: Up to 25 stories tall
      • Speed: 1 ~ 1.75 m/sec
      • Capacity: 1,150 kg
      • Max Passenger Capacity: 15 persons
  • Observation Elevator
    Observation Elevator
      Type:  1-Sided, 2-Sided, 3-Sided, Semicircular, Glass-walled observation elevators

      • Speed: 0.75 ~ 1.75m/sec
      • Capacity: 450 ~ 1,600kg
      • Passenger Capacity: 6 ~ 24 persons
  • Marine Elevators
    Marine Elevators

      Classification:  Marine Elevators
      Use: Tanker, cargo ship, container ship, drill ship, floating production storage vessel, passenger ship

      • Maximum Service Decks: up to 30 decks(tiers)
      • Speed: 30, 45, 60, 96 m/min
      • Capacity: 320 ~ 5,000 kg
      • Landing Doors: MED Certified Fire Doors
  • Escalators
    Escalators

      Model: S SERIES (S-BT, S-BB)

      Vertical Height:

      2m ~ 6m

      1.7m ~ 10.5m

      10.5m ~ 22m

      Inclination: 35°, 30°

      Use: Commercial buildings (malls, department stores, etc.)

      and Public facilities (airports, subway stations, etc.)

  • Moving Walks
    Moving Walks

      Model: S SERIES (SM-BT)

      Vertical Height:

      100m

      9m

      Inclination: 0°(horizontal), 12°(inclined)

  • Elevator Type (Pallet Type)
    Elevator Type (Pallet Type)
      • Use:  Small and mid-sized buildings (Hospitals, Office buildings, Hotels, residential,
        convenience facilities)
      • Allowed Cars for Parking:  Mid- and full-size cars, SUVs (possible to accommodate full-size cars)
      • Capacity: 50 cars
      • Max. Capacity: 76 cars
  • Hyundai Integrated Parking System(HIP)
    Hyundai Integrated Parking System(HIP)
      • Use: Large-sized buildings (Department stores, underground areas,business facilities, hotels, shopping centers,
        multiplex cinemas)
      • Allowed Cars for Parking: Mid- and full-size cars, SUVs (possible to accommodate full-size cars)
      • Capacity: 100 cars or more
      • Max. Capacity: 150 cars
  • Cart Type
    Cart Type
      • Use: Small and large-sized buildings (underground)
      • Allowed Cars for Parking: Mid- and full-size cars, SUVs (possible to accommodate full-size cars)
      • Capacity: 50 cars / Lift
      • Max. Capacity: 70 cars / Lift
      • Safety Device: Motion detection sensors (at entry)

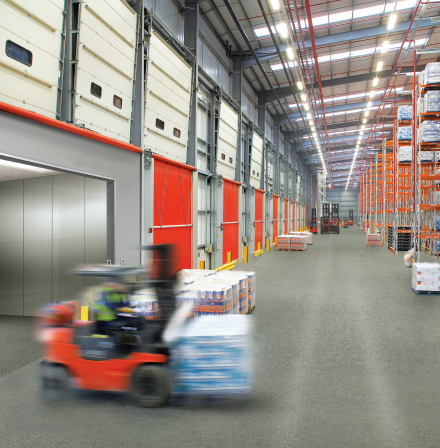

  • Freight/ Automobile Elevator
    Freight/ Automobile Elevator
      Type:  General, Hydraulic

      • Speed: 0.3 ~ 1m/sec
      • Capacity: 1,500 ~ 5,000kg
