  • THE EL
    THE EL

      The Only Elevator Engineered for First-Class Architecture & Skyscrapers

      An ultra-high-speed elevator combining cutting-edge technology, exceptional safety, and refined elegance, designed for landmark high-rise developments.

      Key Highlights:

      • Maximum Travel Height: up to 50 stories tall
      • Speed: 5 ~ 18 m/sec
      • Capacity: 2,000 kg
      • Max Passenger Capacity: 26 persons

      Key Features

      1. Ultra-High-Speed Drive System

      • 9-phase synchronous motor architecture with three independent motor sets, ensuring fault-tolerant operation and uninterrupted performance.
      • High-capacity compact hydraulic brake, delivering braking precision up to 10× higher than conventional magnetic braking systems.

      2. Superior Ride Comfort (NVH Control)

      • Airtight car door system that seals the cabin after door closure, significantly reducing noise and stabilizing internal air pressure.
      • Aerodynamically optimized capsule cabin, developed through flow analysis and simulation, minimizing air resistance, vibration, and noise.

      3. Advanced Safety Systems

      • Ceramic emergency stop device for high-performance braking at extreme speeds.
      • Flyball governor enabling precise speed detection and emergency stopping above 30% of rated speed.
      • Three-stage telescopic buffer for superior shock absorption.
  • i-XEL
    i-XEL

      A high-speed, gearless elevator engineered for superior safety, energy efficiency, and ride comfort, powered by a high-precision control system.

      Key Highlights

      • Maximum Travel Height: Up to 50 floors
      • Speed: 3 ~ 4 m/sec
      • Rated Capacity: 2,000 kg
      • Maximum Passenger Capacity: Up to 26 persons

      Key Features

      1. Compact Machine Room Design

      • Permanent-magnet gearless traction machine developed by Hyundai Elevator
      • Gearless technology eliminates vibration, ensuring a smooth, quiet ride
      • Multi-polar design reduces size and weight by up to 50% versus conventional induction-motor systems, maximizing usable building space

      2. Superior Energy Efficiency

      • Permanent-magnet traction system delivers up to 25% lower energy consumption
      • High-efficiency LED lighting reduces overall power usage by approximately 30%
      • Regenerative drive technology recovers operational energy, improving energy efficiency by over 77.5%

      3. Premium Interior & Design

      • Modern, spacious cabin design enhancing passenger comfort
      • Refined ceiling, panel, and button design for intuitive use and a high-end tactile experience
  • LUXEN
    LUXEN

      A premium low- and mid-speed gearless elevator delivering ride comfort comparable to high-speed systems, while offering cost-efficient and environmentally friendly performance.

      Key Highlights

      • Maximum Travel Height: Up to 45 floors
      • Speed: 1 ~ 3 m/sec
      • Rated Capacity: 2,000 kg
      • Maximum Passenger Capacity: Up to 26 persons

      Product Features

      1. Superior Ride Comfort

      • Gearless traction system with permanent-magnet synchronous motor
      • Up to 25% energy savings compared to geared induction-motor systems
      • Oil-free operation eliminates oil replacement, reducing maintenance effort and cost

      2. High Energy Efficiency

      • Regenerative inverter (optional) with TÜV SÜD Class A energy efficiency certification (VDI standard)
      • Regenerative operation recovers energy during travel, reducing energy consumption by up to 60% and improving overall energy efficiency by up to 77.5%

      3. Enhanced Safety

      • Door system powered by a permanent-magnet synchronous motor for smoother, more reliable operation
      • Dual-brake system enables continued operation in the event of single-brake failure
      • Fully compliant with European Safety Standard EN81
  • YZER
    YZER

      Machine-room-less (MRL) elevator, designed to maximize building space efficiency while offering greater flexibility in hoistway configuration and architectural skyline design.

      Key Highlights

      • Maximum Travel Height: Up to 45 floors
      • Speed: 1 – 2.5 m/sec
      • Rated Capacity: 2,500 kg
      • Maximum Passenger Capacity: Up to 33 persons

      Product Features

      1. Optimized Space Utilization

      • Machine-room-less design eliminates the need for a dedicated machine room, reducing construction time and overall project costs
      • Minimal hoistway and pit requirements enhance usable building space
      • Minimum pit depth: 1,200 mm, enabled by a topside suspension structure arrangement

      2. Lower Energy & Maintenance Costs

      • High-performance, oil-free traction machine developed by Hyundai
      • No bearing lubrication required, simplifying maintenance and reducing lifecycle costs
      • Environmentally friendly system with reduced energy consumption

      3. Smart Communication & Comfort

      • Smart Indicator (optional) displays key information such as date, time, floor, and security status on an LCD screen
      • Built-in anion double air-cleaning and ultrasonic pest-control functions enhance in-car air quality
  • N:EX
    N:EX

      An advanced belt-drive elevator system combining eco-friendly technology with ultra-quiet operation, high operational efficiency, and optimized space utilization.

      Key Highlights

      • Maximum Travel Height: Up to 25 floors
      • Speed: 1–1.75 m/sec
      • Rated Capacity: 1,150 kg
      • Maximum Passenger Capacity: Up to 15 persons

      Product Features

      1. Next-Generation Eco-Friendly Technology

      • H-Belt drive system replaces conventional steel ropes with high-performance belts
      • Compact, high-power hoisting system with expanded architectural design flexibility
      • Up to three times longer service life with no oil management required

      2. Premium Design

      • Four distinctive interior design themes inspired by nature and urban environments
      • Customizable design options optimized for installation conditions, usability, and client requirements

      3. Advanced Smart Technologies

      • Touchless operation via Air Touch and Motion Call for destination registration
      • Ozone-free ionized air purification and ultrasonic pest-prevention systems
      • Smart Indicators enhance visibility and overall user experience

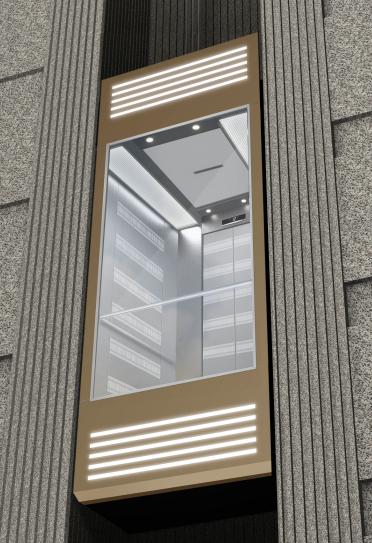

  • Observation Elevator
    Observation Elevator
      Type:  1-Sided, 2-Sided, 3-Sided, Semicircular, Glass-walled observation elevators

      • Speed: 0.75 ~ 1.75m/sec
      • Capacity: 450 ~ 1,600kg
      • Passenger Capacity: 6 ~ 24 persons
  • Marine Elevators
    Marine Elevators

      Classification:  Marine Elevators
      Use: Tanker, cargo ship, container ship, drill ship, floating production storage vessel, passenger ship

      • Maximum Service Decks: up to 30 decks(tiers)
      • Speed: 30, 45, 60, 96 m/min
      • Capacity: 320 ~ 5,000 kg
      • Landing Doors: MED Certified Fire Doors
  • Freight/ Automobile Elevator
    Freight/ Automobile Elevator
      A robust freight / automobile elevator designed for carrying heavy items, including large freight and vehicles.
      Type: General, Hydraulic
      • Speed: 0.3 – 1 m/sec
      • Capacity: 1,500 – 5,000 kg
